Contained Transfers

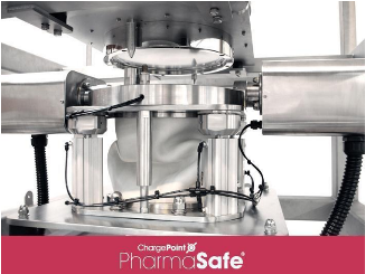

OEL 5 containment using split butterfly valves:


ChargePoint PharmaSafe® Powder containment valves offering the highest levels of containment performance to assure the safe handling of potent API, intermediates and pharmaceutical formulations.

Benefits

  • Ensure industry regulatory compliance.
  • Process highly potent ingredients (HPAPI), ensuring the safety of your personnel and reduced environmental contamination.
  • Reduce risk of contamination.
  • Meet GMP and product quality requirements.
  • Maximise yield by transferring poorly flowing and high value product.
  • Facilitate respirator free and ‘shirt-sleeve’ manufacturing initiatives by removing costly secondary barrier containment and cumbersome PPE.

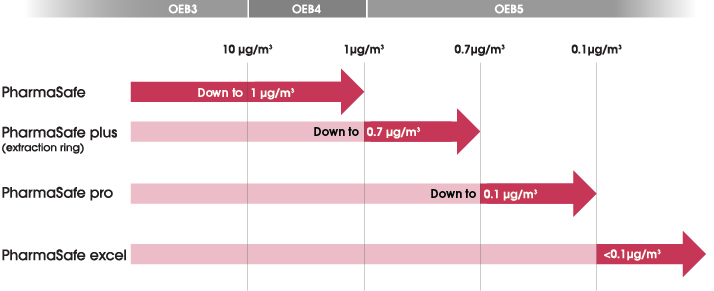

Containment Performance

ChargePoint PharmaSafe® valve containment performance has been independently validated by customers and third parties according to the ISPE SMEPAC (Standardised Measurement of Equipment Particulate Airborne Contamination) guideline.

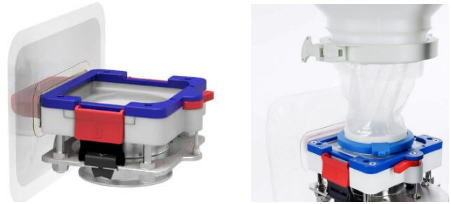

Full bore valves for contained powder flow- Small Volume:


A unique and simple to use high containment transfer system for use with highly potent pharmaceutical ingredients (HAPI’s) – Tested to OEB 5<1µg/m3 with an option of 4 or 6 inch. Full bore.

Key Features to improve your Process

  • High Containment Performance <1μg/m3
  • Fast, Full-Bore Discharge
  • 4 and 6 inch Formats
  • Liquid Tight for Easy Flushing or Addition
  • of Liquids
  • Fully Disposable Charge bag & Passive
  • Connection
  • 4-5 times cheaper than “Old Style” Split
  • Butterfly Valve alternatives
  • Fast, Trouble-Free Supply

Applications

  • Reactor Charging
  • Extruder Charging
  • Powder Filling Lines
  • Tablet Press Charging
  • Tablet Coater Charging
  • Blenders/Mixer
  • Filter Dryers
  • Tablet Packing Lines
